Ultrasonic Metal Bonding Machine for Power Device

Ultrasonic bonding system which is appropriate for producing power device

• High rigid clamp horn system
• High precision alignment control
• Sophisticated alignment control
• Sufficient process monitoring function

20kHz Rotary Ultrasonic Welder

Ultrasonic rotary processing is revolutionary in manufacturing

• Rotary horn realizes continuous welding
• High rigid clamp system
• Motor drive rotary anvil can be installed
• Process monitoring function

Ultrasonic Minimal Welder

It has come to 1/6 of a size as compared with a conventional one that expands the usage

• Precise alignment/load control allows stable welding
• Sets the welding recipe digitally
• Good for stand alone but can install a multi axis robot in the machine
• Compact size

Ultrasonic Lay-up Machine

Innovative ultrasonic thermoplastic UD tape lay-up processing

• Ultrasonic applies appropriate heat to weld in high quality
• Follows the uneveness on the surface of application and obtain stable welding
• No need to heat and press for the lay-up process
• Process monitoring function

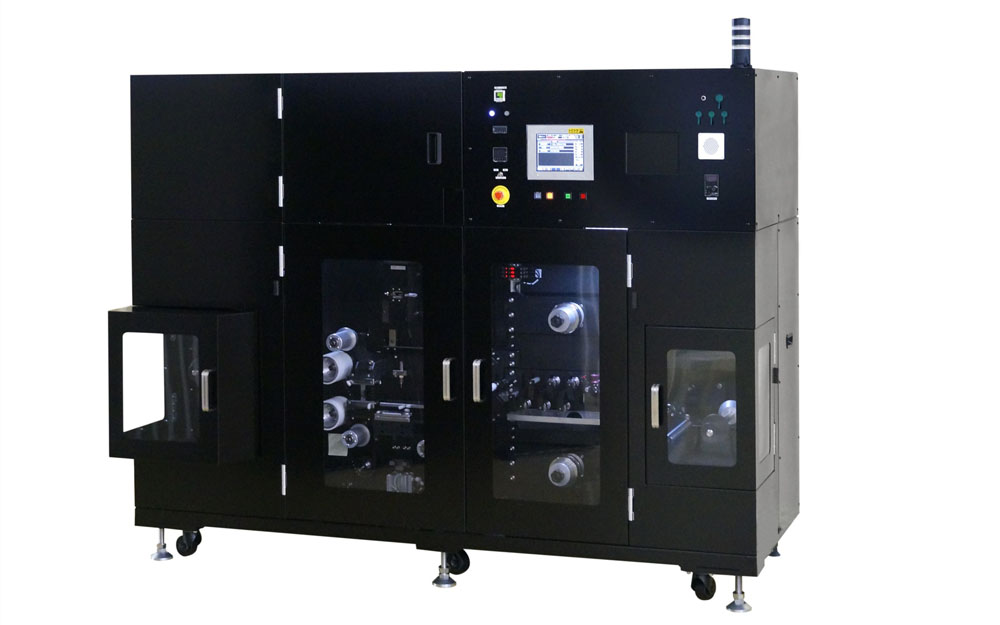

Ultrasonic Opening/Impregnation M

Revolutionary compact size of machine that manufactures complete impregnated UD tapes

• Effectively use ultrasonic for leveling/impregnation
• Smooth surface and uniform cross section
• Supply impregnated resin in film format
• Compact size

Ultrasonic Welding Machine

Original ultrasonic welding technology realizes a high-rigid continuous welding

• Welds CFRTP UP tape on a resin product rigidly
• Lays out a UD tape while leveling and impregnating
• Welds a L size application in free shape
• Welds CFRTP rigidly

40kHz Rotary Ultrasonic Welder

Ultrasonic rotary bonding is revolutionary in manufacturing

• It can bond a wide area
• Continuous tool
• adwelds pursues comfortable usability
